Effective Techniques to Share Angular Components Across Projects

If you’re working with single-page apps, chances are you’re likely running on Angular. Angular is a powerful frontend framework that easily lets you build complex and dynamic single-page apps. When working on a small project, you will not encounter any issues, as you maintain a handful of components in one project.

But what if you were working on four to five different Angular projects that leveraged  similar  components?

For example, this could be the design system on which all your apps are based. You might have a set of defined components that showcase how certain layouts, text fields, buttons, and typography are structured, which are exposed through a design system as a set of reusable components.

How do you build such shareable components in Angular?

Well, that’s what this article is about. Let’s look at how you can build and share reusable Angular components across multiple projects.

Syncfusion Angular component suite is the only suite you will ever need to develop an Angular application faster.

Explore Now

Sharing components between Angular projects

You can share code between multiple Angular projects in two key ways. Let’s look at them in order of recent announcements. So, in a nutshell, the two approaches are:

1. Angular workspaces
2. NPM packages

Angular workspaces

Angular Workspaces have been available since v17 and are a container for one or more projects. An Angular project is a set of files that comprise a standalone app or a library.

This means you can maintain an Angular workspace on a monorepo and have several projects within your single workspace. Projects within a workspace can share components, allowing you to effectively manage reusable components within your Angular projects.

So, to get started, let’s bootstrap an Angular workspace. To do so, you’ll need to install Node.js and Angular CLI. Afterward, run the following command:

ng new workspace --create-application=false

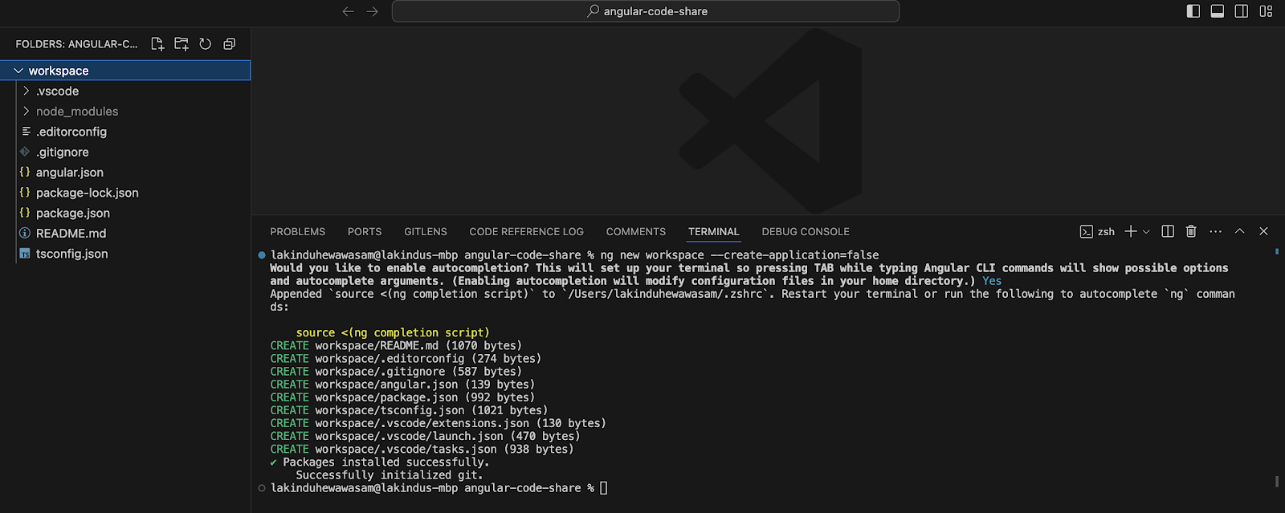

This will create the following output.

As you can see, this doesn’t create an application; rather, it creates boilerplate code that contains an angular.json and a package.json file.

Next, you can create an Angular Library that holds your reusable components. This can be done using the command:

ng generate library design-system

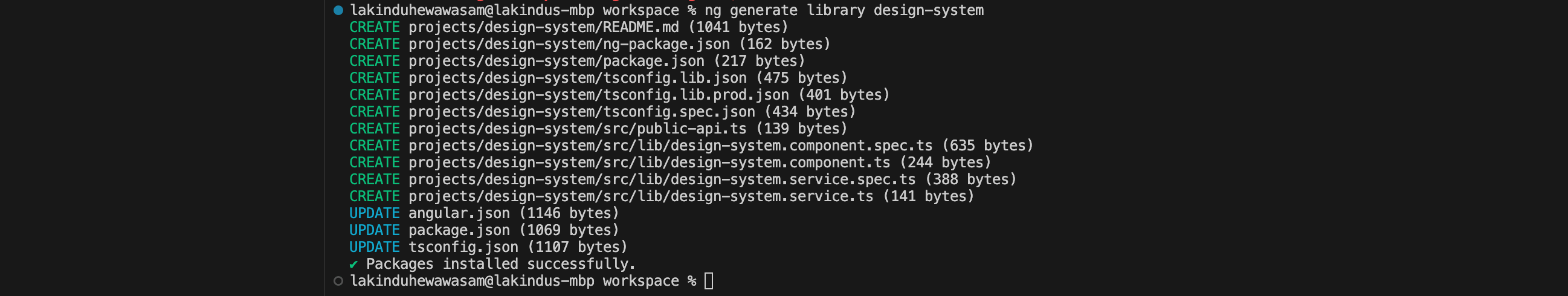

This generates a component library named – design-system and will display the following output:

As you can see, it created an empty library – design-system. Next, we can create a component that needs to be shared inside our library. This can be done using the command:

ng generate component elements/button

Note, ensure that you’re navigated to the design-system project before running the command.

Upon running the command, you’ll see the following output.

Next, let’s open the button.component.html and create a simple button that does three things:

1. Renders a custom title.
2. Binds an onClick event.
3. Accepts custom styling.

So, include the code:

<div>
  <button (click)="onClick.emit()" [style]="style">
    {{ label }}
  </button>
</div>

Next, let’s make sure these can be passed into the Button component by updating the button.component.ts with the following code:

import { Component, Input, Output, EventEmitter } from '@angular/core';

@Component({
  selector: 'lib-button',
  standalone: true,
  imports: [],
  templateUrl: './button.component.html',
  styleUrl: './button.component.css',
})
export class ButtonComponent {
  @Input() label: string = 'Hello World';
  @Output() onClick = new EventEmitter<void>();
  @Input() style = {
    color: 'black',
    backgroundColor: 'white',
    padding: '10px 20px',
    borderRadius: '5px',
    border: '1px solid black',
    cursor: 'pointer',
  };
}

Next, let’s build the library using the command:

ng build

After you run the command, it will build the library and create an entry point to your library to make sure it’s usable within your workspace.

Next, let’s create an app that consumes the Button component. To do so, create an app using the command:

ng generate application test-app

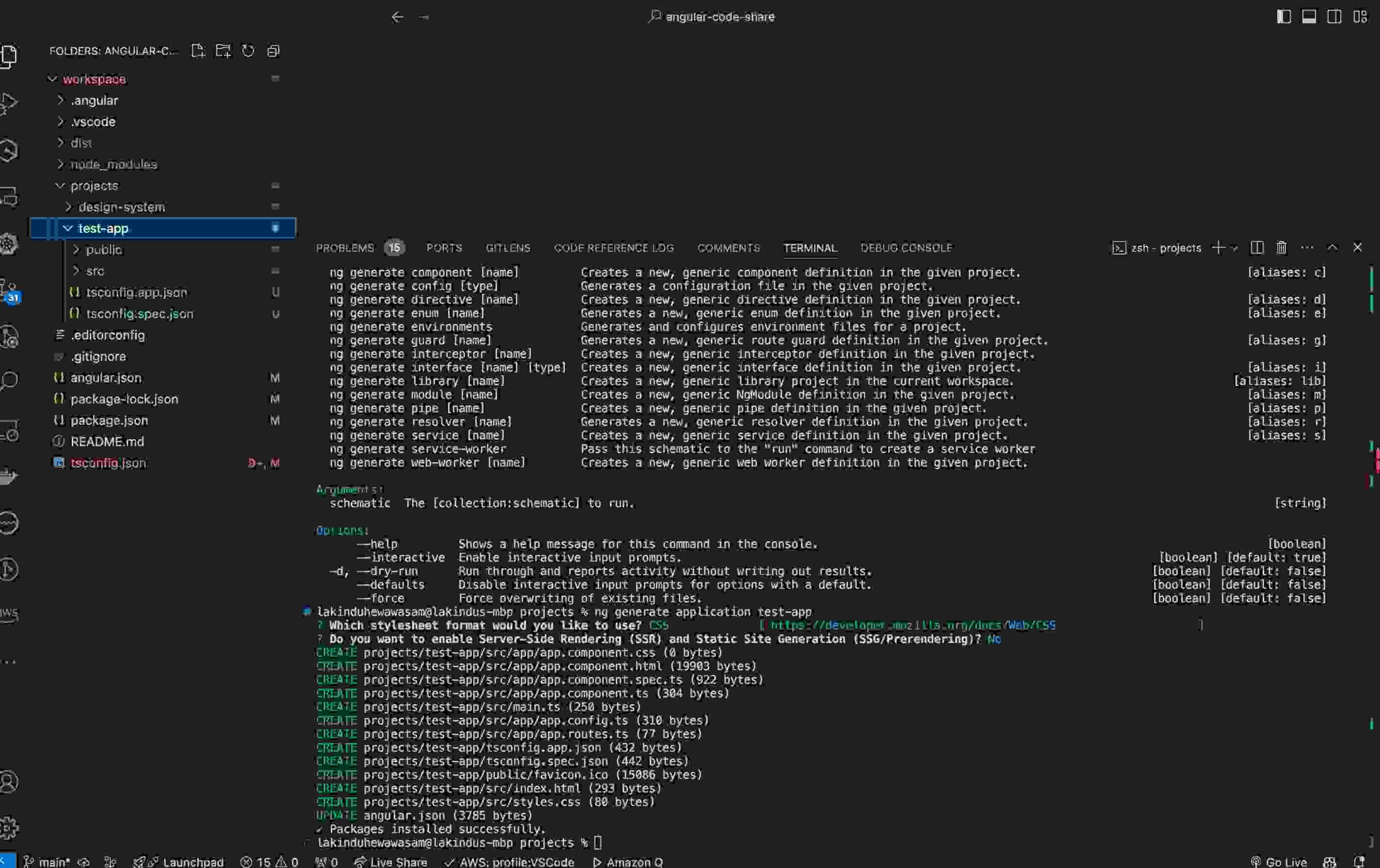

Your app will be created within your workspace, as shown in the following image.

Let’s open the app.component.html and use the Button component:

<lib-button
 [label]="'Label From App'"
 (onClick)="onButtonClick()"
/>

Next, define the onClick handler in the app.component.ts file.

import { Component } from '@angular/core';
import { RouterOutlet } from '@angular/router';
import { ButtonComponent } from "../../../design-system/elements/button/button.component";

@Component({
  selector: 'app-root',
  standalone: true,
  imports: [RouterOutlet, ButtonComponent],
  templateUrl: './app.component.html',
  styleUrl: './app.component.css'
})
export class AppComponent {
  title = 'test-app';

  onButtonClick() {
    alert('Hello World');
  }
}

Next, launch the Angular app to see the cross-project usage in action. This can be done using the command:

ng serve

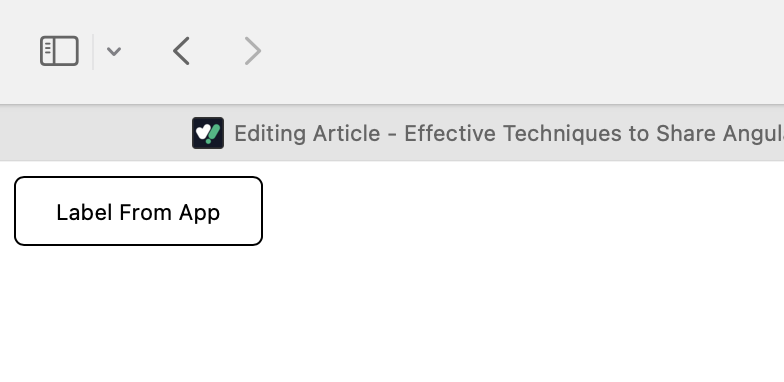

Next, launch localhost:4200 on your browser to view the project in action:

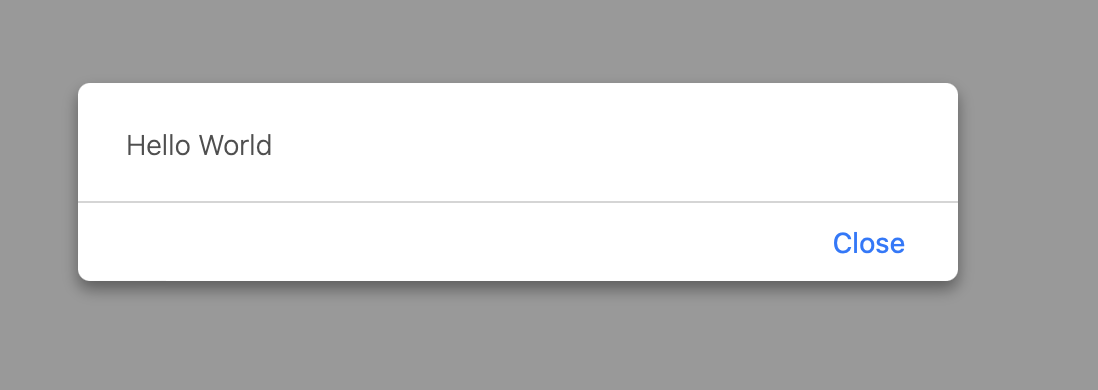

As you can see, the Label is now working, and upon clicking, you can see the event being handled:

That’s a simple yet effective step for a native approach to share components within Angular projects.

Use the right property of Syncfusion Angular components to fit your requirement by exploring the complete UG documentation.

Read Now

NPM packages

We looked at how to share an Angular component within the same workspace. But you might wonder, “What if my app lives in a different Angular workspace?”

Well, at those times, this solution won’t work. You need to go one step further and adopt global usability, which can be achieved by leveraging NPM packages.

All of us have used NPM packages, right? They are simple libraries that we install from NPM to assist with repetitive tasks. For instance, you’ve got date-fns to handle all date manipulation functions. Likewise, you can publish the Angular Library you developed earlier onto NPM to ensure it’s accessible to anyone.

This can be done in these simple steps:

1. Creating an Angular workspace.
2. Creating an Angular library.
3. Building UI components within your Angular library.
4. Building your Angular library using ng build.

We’ve already done steps 1 to 4. All that’s left is one final step. To publish the built library onto NPM, you need to run the following command:

npm publish

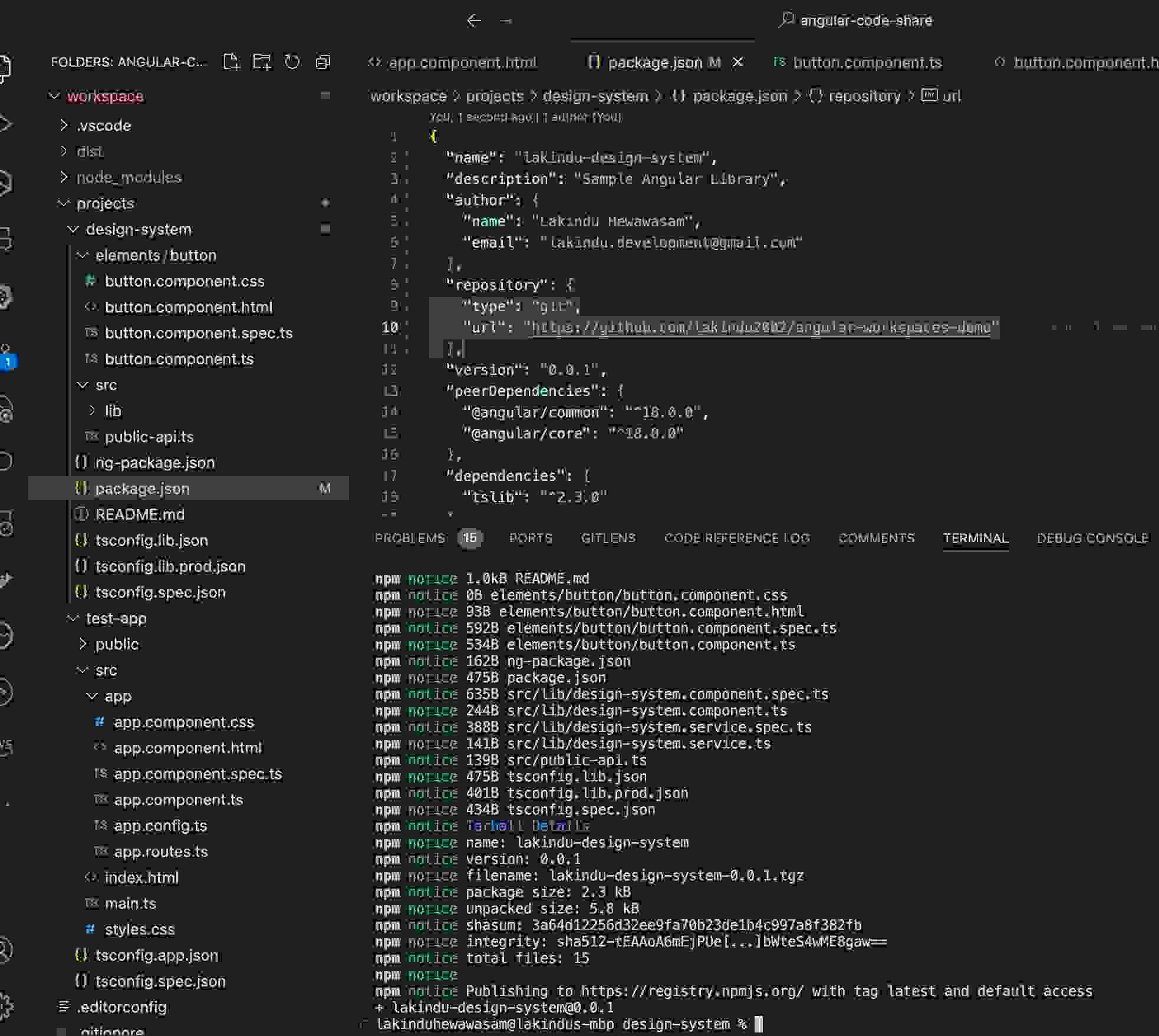

That’s pretty much it. This will publish your Angular Library onto NPM. You should see the output:

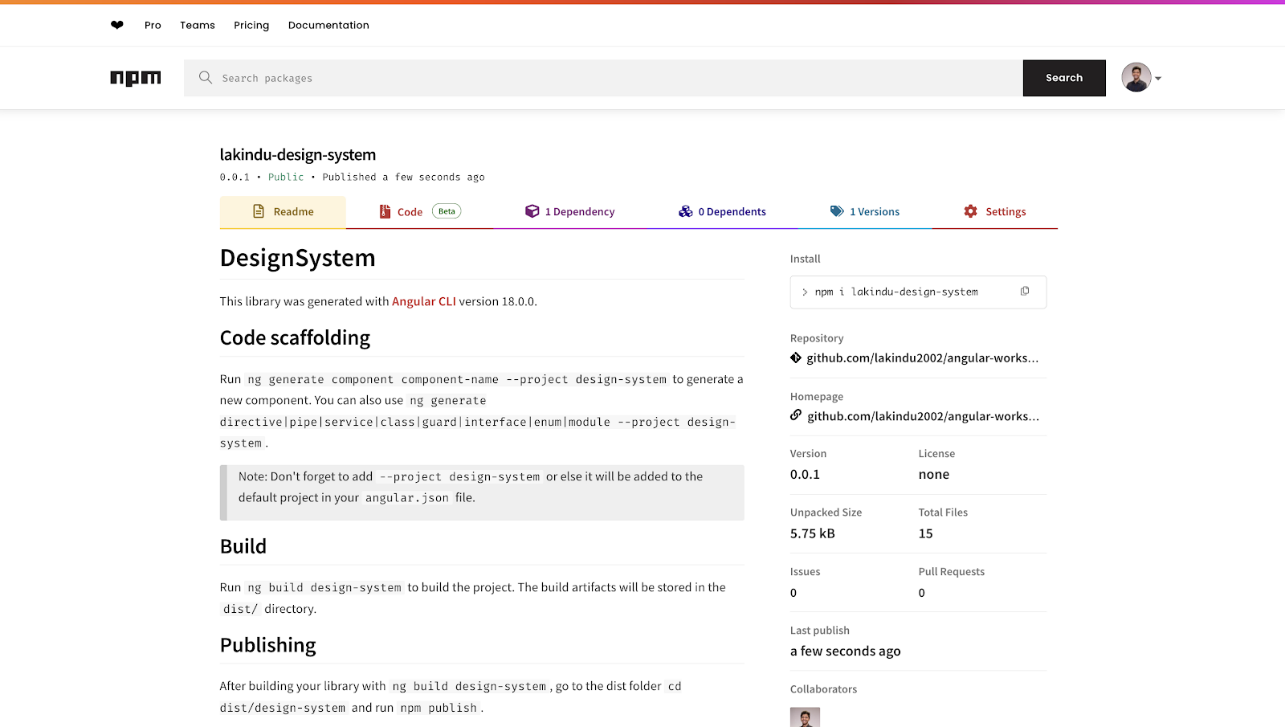

You can visit my library on NPM.

Next, you can install the library using the following command:

npm i lakindu-design-system

By doing so, you can start using the library within your app.

To do so, let’s create a new app using the command:

ng new sample-app

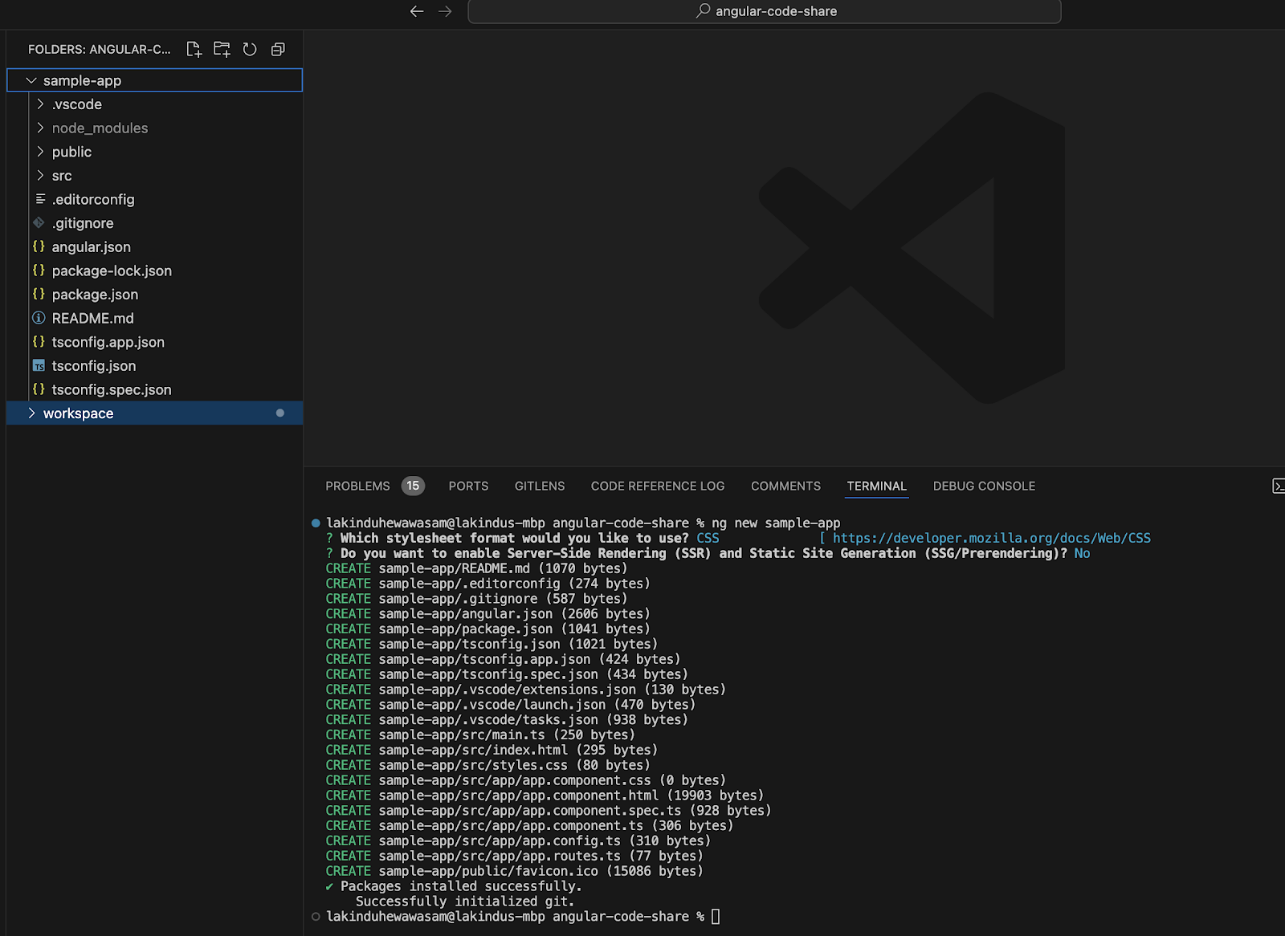

You should see the following output.

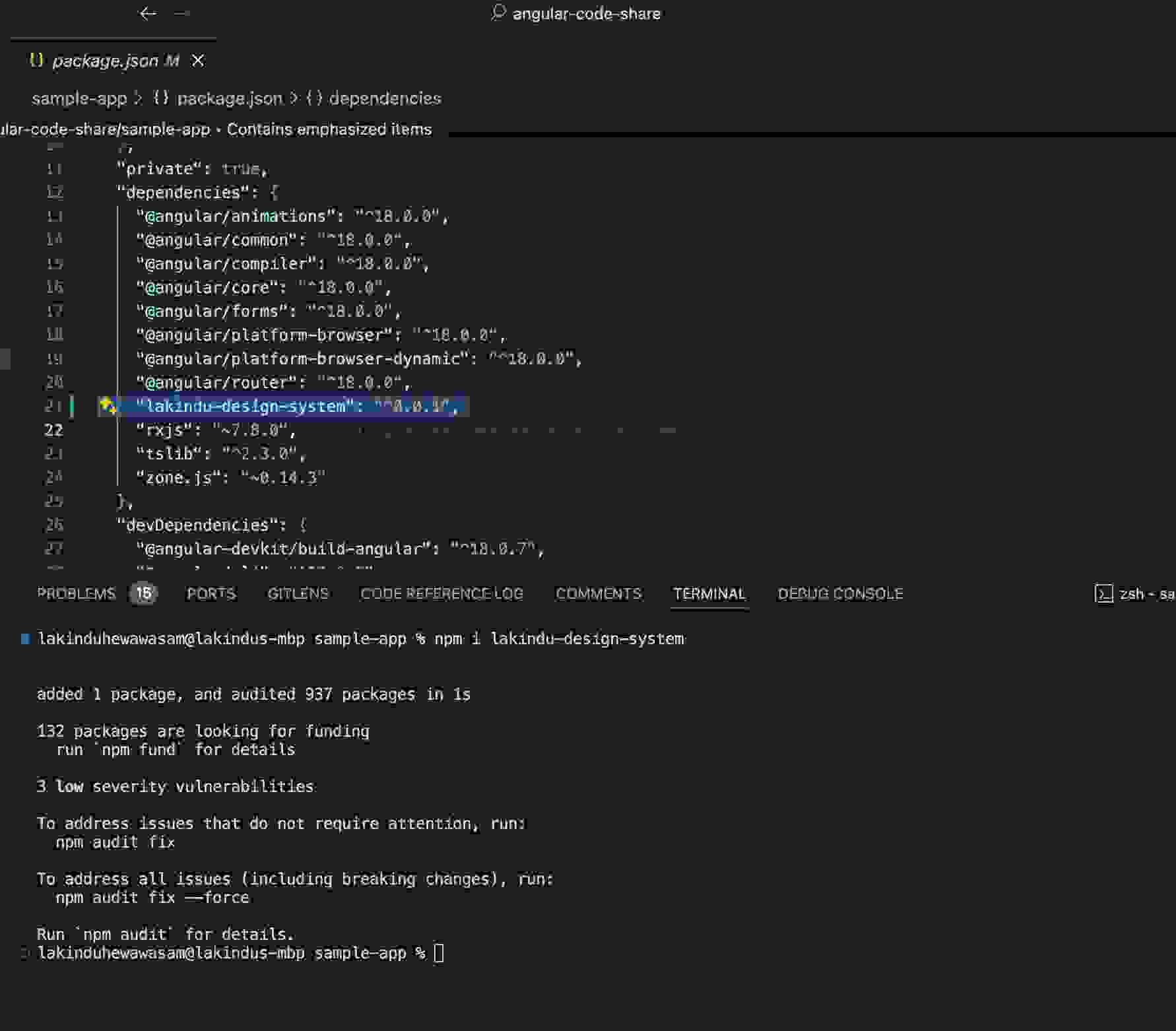

Afterward, install the library onto the app using the following command:

npm i lakindu-design-system

This will display the following output.

Next, update your app.component.html file to use the library.

<lib-button
  [label]="'Hello from sample app'"
  (onClick)="onClick('Hello from sample app')"
/>

Let’s update the app.component.ts file to define the event handlers of the Button component in the library.

import { Component } from '@angular/core';
import { RouterOutlet } from '@angular/router';
import { DesignSystemModule } from 'lakindu-design-system/src/lib/design-system.module';

@Component({
  selector: 'app-root',
  standalone: true,
  imports: [RouterOutlet, DesignSystemModule],
  templateUrl: './app.component.html',
  styleUrl: './app.component.css',
})
export class AppComponent {
  title = 'sample-app';

  onClick(message: string) {
    alert(message);
  }
}

As you can see, you’ll have to import the DesignSystemModule to allow its components to be used. If you don’t know how to include the module, create a file design-system.module.ts in your library and include the code below:

import { NgModule } from "@angular/core";
import { ButtonComponent } from "./elements/button/button.component";

@NgModule({
    imports: [
      ButtonComponent
    ],
    declarations: [],
    exports: [
      ButtonComponent,
    ],
    providers: []
})
export class DesignSystemModule {}

This will let you export your library components via the module and import them in a different context. So, in your library, you import the module and allow all its exports to be imported.

Be amazed exploring what kind of application you can develop using Syncfusion Angular components.

Try Now

GitHub reference

To check out the full code, explore my GitHub repository.

Harness the power of Syncfusion’s feature-rich and powerful Angular UI components.

Try It Free

Conclusion

And that’s pretty much it! There are two ways to share your Angular components across multiple projects with minimal hassle.

Angular Workspaces help you build libraries that bundle reusable Angular components and can be directly published onto NPM Repositories. This allows you to use the components across Angular apps and different workspaces!

I hope you found this article helpful. Thank you for reading!
