Flowchart Creation in Angular Diagram

TL;DR: Learn how to automate flowchart creation in your Angular apps using Syncfusion Angular Diagram, eliminating the need for manual positioning. Generate flowcharts from external data, customize designs, and utilize features like zooming, panning, and serialization for enhanced interactivity. Streamline your workflows and enhance clarity with this powerful tool!

Manually assigning coordinates to flowchart elements is time-consuming and prone to errors. The Syncfusion Angular Diagram library provides a simplified approach with minimal configuration, enabling you to focus on your data rather than precise element positioning.

In this blog, we’ll demonstrate how to automate flowchart creation using Syncfusion’s Diagram component, eliminating manual placements by leveraging its built-in automatic layout algorithm.

What is a flowchart?

The Flowcharts are powerful tools for visually representing processes, workflows, systems, or algorithms. They use distinct symbols for various actions or steps, connected by arrows that indicate the control flow. With Syncfusion’s Angular Diagram, you can effortlessly generate these diagrams from external data, simplifying your workflow and enhancing clarity.

Common flowchart symbols and their meanings

Flowchart symbols are integral to visualizing different stages and operations within a process. Each symbol carries a specific meaning, representing distinct tasks, decisions, or data operations. The following table outlines the most commonly used flowchart symbols and their functions in illustrating processes.

SymbolNameDescription
TerminatorTerminatorIndicates the beginning or end of a process.
Data SymbolDataRepresents the input or output of data within a process.
Process SymbolProcessDenotes an operation, task, or data manipulation performed within the process.
Decision SymbolDecisionIndicates a decision point where the process can branch into two or more paths based on conditions.
Document SymbolDocumentRepresents a single document or report generated or referenced in the process.
Predefined Process SymbolPredefined ProcessSignifies a predefined set of operations, often represented elsewhere, that completes a specific task.
Internal Storage SymbolInternal StorageRepresents the internal storage of data.
Direct Data SymbolDirect DataRepresents a dataset that can be searched, sorted, or filtered for information.
Stored Data SymbolStored DataIndicates a step where data is stored within the process for future use or reference.
Sequential Data SymbolSequential DataRepresents data that must be accessed sequentially.
Sort SymbolSortRepresents a step that organizes list of items sequentially.
Paper Tap SymbolPaper TapRepresents a step where data gets stored within a process.
Manual Input SymbolManual InputRepresents manual data entry at a specific point in the process.
Manual Operation SymbolManual OperationRepresents an action or task that requires manual execution rather than an automated process.
Preparation SymbolPreparationIndicates a setup or preparatory phase before transitioning to another step.
Off-Page Reference SymbolOff-Page ReferenceLinks parts of a flowchart that continue on another page, often used in complex processes.
Multi-Document SymbolMulti-DocumentRepresents multiple documents or reports involved at a given point in the process.
Card SymbolCardRepresents a data card or punched card used for data entry or storage.
Summing Junction SymbolSumming JunctionRepresents the logical AND (merge multiple inputs into a single output).
Or SymbolOrRepresents the logical OR.
Merge SymbolMergeRepresents a step where two or more sub-lists or sub-processes become one.
Extract SymbolExtractRepresents retrieving data from a source for further processing or analysis in a flowchart.
Delay SymbolDelayRepresents a period of delay in a process.
Collate SymbolCollateRepresents gathering and arranging data or documents from multiple sources into a structured format.
Annotation SymbolAnnotationRepresents additional information and clarifications about a process or decision point in the flowchart.
Annotation2 SymbolAnnotation 2Represents additional comments or notes about a process in the flowchart.
Sequential Access Storage SymbolSequential Access StorageRepresents information that is stored in a sequential manner.
Display SymbolDisplayRepresents information or data being shown on a screen or printed for the user’s review.
Loop Limit SymbolLoop LimitRepresents the maximum number of times a particular process or operation can be repeated within a loop.
Flowline SymbolFlowlineDepicts the flow or direction from one step to the next. These lines are automatically created based on relationships between parent and child elements.

Getting started with a simple flowchart

In this section, we’ll create a simple flowchart using the Syncfusion Angular Diagram library. By leveraging its built-in, high-performance layout algorithm, we can automatically arrange flowchart symbols, eliminating the need to manually set coordinates.
In addition, the diagram control supports visualizing flowcharts directly from a data source. Let’s get started

Step 1: Define the data source

To populate the flowchart in the diagram, we need to define a data source or a collection of nodes. Within the flowchart layout, you can specify the desired shape, style, labels for nodes, connectors, and decorator types for connectors directly in the data source, enhancing the UI design.

Field definitions

  • name: Represents the annotation displayed on the node.
  • shape: Defines the node’s shape (e.g., Terminator, Process).
  • color: Specifies the fill color of the node.
  • stroke: Defines the border color of the node.
  • strokeWidth: Specifies the border thickness of the node.
  • label: Adds annotations to the incoming connectors.
  • arrowType: Determines the arrowhead type (decorator) of the incoming connector (e.g., Diamond, Fletch).

This structure allows for easy customization of the flowchart’s visual elements based on the provided data source.

The following code example defines a data source, along with custom fields that fit the flowchart requirements.

// Initializes the data source for the layout
public data = [
  {
    id: '1',
    name: 'Start',
    shape: 'Terminator',
    color: '#8E44CC',
  },
  {
    id: '2',
    name: 'Open Gmail site in browser',
    parentId: ['1'],
    shape: 'Rectangle',
    color: '#1759B7',
  },
  {
    id: '3',
    name: 'Existing \nor \n new user?',
    parentId: ['2'],
    shape: 'Decision',
    color: '#2F95D8',
  },
  {
    id: '4',
    name: 'Create an account',
    label: ['New'],
    parentId: ['3'],
    shape: 'Rectangle',
    color: '#1759B7',
  },
  {
    id: '5',
    name: 'Sign in',
    label: ['Existing'],
    parentId: ['3'],
    shape: 'Rectangle',
    color: '#1759B7',
  },
  {
    id: '6',
    name: 'Enter username \n and password',
    label: ['', 'No'],
    parentId: ['5', '7'],
    shape: 'Data',
    color: '#70AF16',
  },
  {
    id: '7',
    name: 'Authorized?',
    parentId: ['6'],
    shape: 'Decision',
    color: '#2F95D8',
  },
  {
    id: '8',
    name: 'Login successful!!',
    label: ['Yes'],
    parentId: ['7'],
    shape: 'Rectangle',
    color: '#1759B7',
  },
  {
    id: '9',
    name: 'Enter first name \n and last name',
    parentId: ['4'],
    shape: 'Data',
    color: '#70AF16',
  },
  {
    id: '10',
    name: 'Enter username \n and password',
    label: ['', 'Yes'],
    parentId: ['9', '11'],
    shape: 'Data',
    color: '#70AF16',
  },
  {
    id: '11',
    name: 'Username \n already \n exists?',
    parentId: ['10'],
    shape: 'Decision',
    color: '#2F95D8',
  },
  {
    id: '12',
    name: 'Registration Successful!!',
    label: ['No'],
    parentId: ['11'],
    shape: 'Process',
    color: '#1759B7',
  },
  {
    id: '13',
    name: 'Open inbox',
    parentId: ['8', '12'],
    shape: 'Process',
    color: '#1759B7',
  },
  {
    id: '14',
    name: 'End',
    parentId: ['13'],
    shape: 'Terminator',
    color: '#8E44CC',
  },
];

The parent-child relationships are essential in establishing the flowchart structure, so ensure each node properly references its parent using the parentId field.

Step 2: Binding the data source to the diagram

After preparing the data source, bind it to the Angular Diagram component using DataSourceSettings. This will automatically map the nodes to the diagram and establish connections based on parent-child relationships.

In App.component.html file, define the diagram control and bind the dataSourceSettings as follows.

<ejs-diagram #diagram id="diagram" width="100%" height="680px"
             [getConnectorDefaults]='getConnectorDefaults' [getNodeDefaults]='getNodeDefaults'
             [layout]='layout' [dataSourceSettings]="dataSourceSettings">
</ejs-diagram>

Next, in the App.component.ts file, define the dataSourceSettings using the following code example.

public dataSourceSettings: object = {
    id: 'id',
    parentId: 'parentId',
    dataSource: new DataManager(this.data),
};

Step 3: Customize the layout

You can easily customize the layout to meet your design requirements. To render a flowchart layout, set the layoutType property to Flowchart. You can customize the space between the nodes using the horizontalSpacing and verticalSpacing properties of the layout class.

In addition, the margin property helps add padding around the layout. These values can be bound to the UI,enabling real-time updates for a more dynamic user experience.

Refer to the following code example.

public layout: LayoutModel = {
    type: 'Flowchart',
    margin: {left: 10, right: 10, top: 10, bottom: 20}
    verticalSpacing: 50,
    horizontalSpacing: 50
};

Once the code is executed, a fully functional flowchart with automated node arrangement will be generated, as demonstrated in the following image.

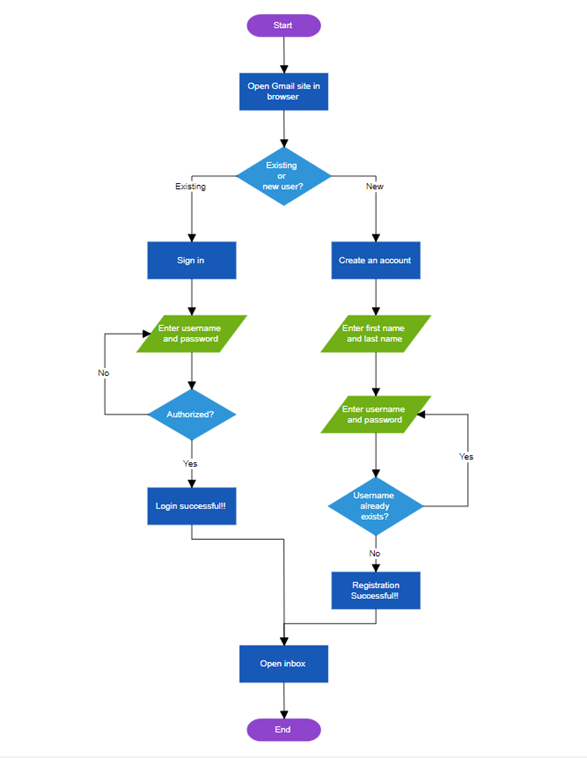

Flowchart Layout in Angular Diagram
Automating flowchart creation using the Angular Diagram

Flowchart orientation customization

The Syncfusion Angular Diagram library allows you to easily customize the flowchart’s orientation. Depending on your layout requirements, you can set the flow direction to vertical (TopToBottom) or horizontal (LeftToRight).

You can manage this flexibility through the orientation property of the layout class. By default, the flow direction is vertical, but you can easily change it to horizontal using the following code example.

public layout: LayoutModel = {
    type: 'Flowchart',
    orientation: 'LeftToRight',
};

Refer to the following image.

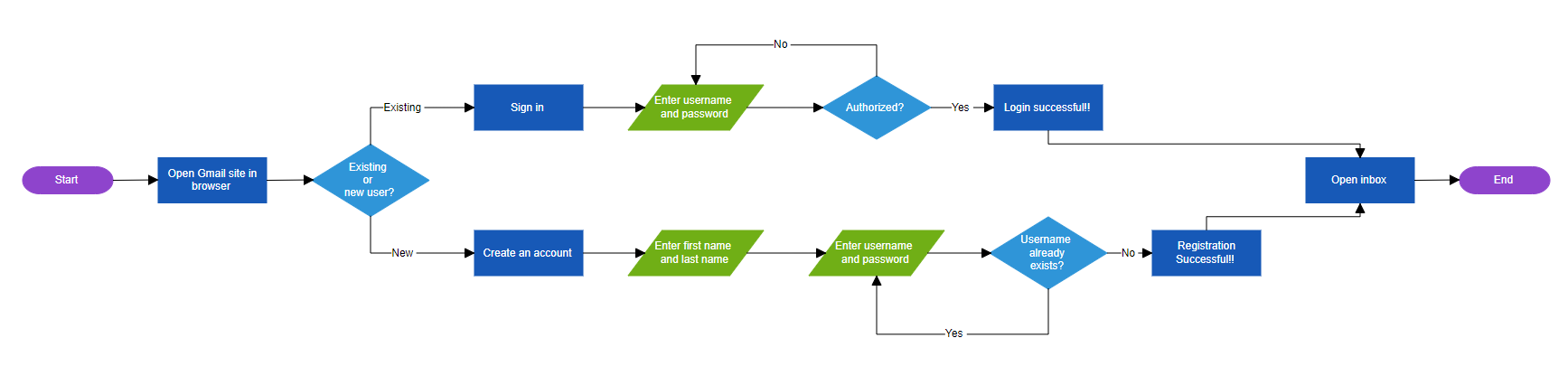

Flowchart Orientation in Angular Diagram
Flowchart orientation customization in Angular Diagram

Customize the decision symbol

In flowcharts, decision symbols represent branching points where a choice is made between two paths.  By default, the flowchart engine automatically determines the direction of these branches. However, with the Syncfusion Angular Diagram component, you can customize the direction of both the Yes and No branches to suit your needs.

You can utilize the yesBranchDirection and noBranchDirection properties of the flowchartLayoutSettings to control the path direction for each branch.

The following code example demonstrates how to customize the Yes branch to follow the flow direction while the No branch diverges to the right.

public layout: LayoutModel = {
    type: 'Flowchart',
    orientation: 'LeftToRight',
    margin: { left: 10, right: 10, top: 10, bottom: 10 },
    flowchartLayoutSettings:{
        //Set the decision yes branch direction
        yesBranchDirection:'SameAsFlow',
        //Set the decision no branch direction
        noBranchDirection:'RightInFlow',
    }
}

Refer to the following image.

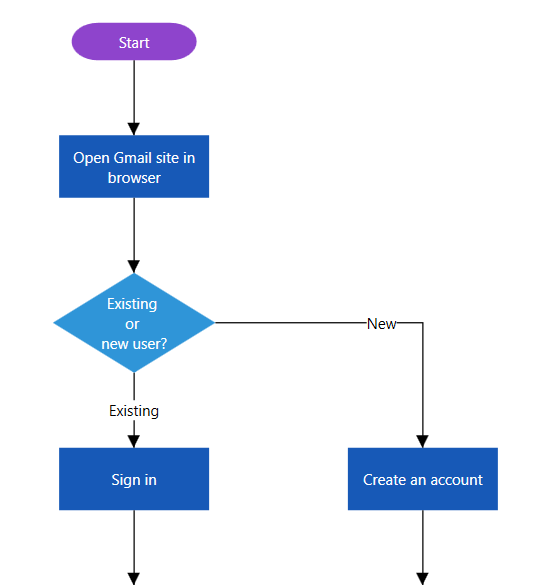

Decision symbol branch directions in Angular Diagram
Decision symbols customization in Angular Diagram

Customize the Yes and No branch line text

Decision branches are typically labeled Yes and No, but you can customize these labels to fit your process flow better. Syncfusion’s Angular Diagram component allows you to define custom values for the Yes and No branches using the yesBranchValues and noBranchValues properties of the flowchartLayoutSettings.

By default, the yesBranchValues property will contain Yes and True string values, and the noBranchValues property will contain No and False string values.

Refer to the following code example to demonstrate how to customize the connector text to say Existing for the Yes branch and New for the No branch.

public layout: LayoutModel = {
    type: 'Flowchart',
    flowchartLayoutSettings: {
      yesBranchValues: ['Existing', 'Yes'],
      noBranchValues: ['New', 'No'],
    },
  };

Zoom and pan

Navigating and viewing large diagrams, such as complex flowcharts, on a small screen can be quite challenging. However, the zooming and panning features simplifies this process by allowing for detailed exploration of extensive diagrams.

To enable zooming and panning, set the tool property to ZoomPan. This allows users to easily zoom in and out using the Ctrl + mouse wheel and pan by clicking and dragging the diagram.

Refer to the following code example.

App.component.html:

<ejs-diagram #diagram id="diagram" [getConnectorDefaults]='getConnectorDefaults'
        width="100%" height="680px"
        [tool]="tool">
</ejs-diagram>

App.component.ts:

public tool: DiagramTools = DiagramTools.ZoomPan;

Then, use the Ctrl + mouse wheel operation to zoom in and out on the flowchart layout.

Serialization and state persistence

Syncfusion Angular Diagram also provides serialization capabilities, enabling users to easily save the diagram’s state as a JSON string for later retrieval. This feature is particularly beneficial for users who need to revisit, edit, or share diagrams in the future.

The diagram’s state, including nodes, connectors, and layout settings, can be saved with a simple function call. The saveDiagram() method serializes the diagram into a JSON string, which can be stored or passed to a server for future use. Later, the loadDiagram() method restores the diagram from the saved data, allowing for seamless continuation of work.

Refer to the following code example.

public serialization(): void {
    const data: string = this.diagram.saveDiagram();
    this.diagram.loadDiagram(data);
}

References

For more details, refer to the Flowchart layout in Angular Diagram Library demos, documentation and GitHub demo.

Harness the power of Syncfusion’s feature-rich and powerful Angular UI components.

Conclusion

Thanks for reading! In this blog, we have seen how to create and customize flowcharts from data without specifying coordinates using the Syncfusion Angular Diagram component as part of the 2024 Volume 3 release. You can also use the library to create an interactive flowchart maker application. More built-in automatic layouts, such as hierarchical and radial tree, are also available in the Diagram control.

To explore more in-depth features, refer to our help documentation on automatic layouts. Also, check out the other new updates in this 2024 volume 3 release through our Release Notes and What’s New pages.

Try out these features and share your feedback as comments on this blog. You can also reach us through our support forumssupport portal, or feedback portal.  We are always happy to assist you!
