The WPF Waterfall Chart shows gradual changes in the quantitative value of an entity that is subject to change by increments or decrements. So, using the waterfall chart, you can quickly illustrate the changes in revenues.

WPF Waterfall Chart documentation

WPF Waterfall Chart


Key features

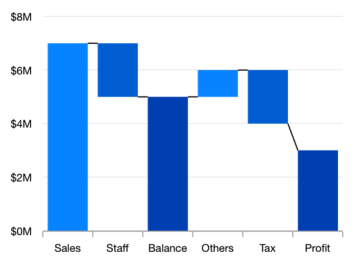

WPF Waterfall Chart with AutoSum

AutoSum

Calculate the sum of previous data points in the waterfall chart. If this property is disabled, use the specified ItemsSource collection’s y-value.

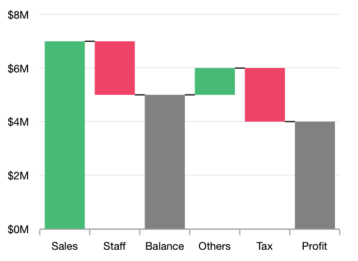

WPF Waterfall Chart with Customized Segment Colors

UI styling

Customize the positive, negative, and summary segment colors of the WPF Waterfall chart by using built-in APIs to make it visually unique.

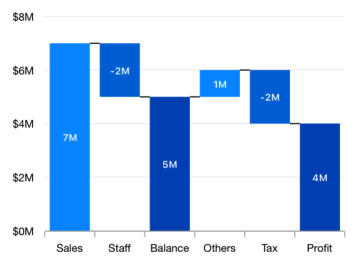

WPF Waterfall Chart with Data Labels

Data labels

Data labels display information about the data points. It provides the support for customizing the foreground, border, and background in addition to template support to customize the default appearance with the desired view. You can rotate a data label by its given angle.


Code example

Easily get started with WPF Waterfall Chart using a few simple lines of XAML and C# code, as demonstrated below,

<Window x:Class="ChartExample.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:ChartExample"
        xmlns:chart="clr-namespace:Syncfusion.UI.Xaml.Charts;assembly=Syncfusion.SfChart.WPF"
        mc:Ignorable="d"
        Title="WPF Waterfall Chart" Height="450" Width="700">

    <!--Setting DataContext-->
    <Window.DataContext>
        <local:ViewModel/>
    </Window.DataContext>

    <StackPanel>
        <chart:SfChart Height="300" Width="500">
            <!--Initialize the horizontal axis for the WPF Chart-->
            <chart:SfChart.PrimaryAxis>
                <chart:CategoryAxis />
            </chart:SfChart.PrimaryAxis>

            <!--Initialize the vertical axis for the WPF Chart-->
            <chart:SfChart.SecondaryAxis>
                <chart:NumericalAxis />
            </chart:SfChart.SecondaryAxis>
             <!--Adding Waterfall Series to the WPF Chart-->
            <chart:WaterfallSeries
                ItemsSource="{Binding RevenueDetails}"
                NegativeSegmentBrush="#F14C72"
                SummaryBindingPath="IsSummary"
                SummarySegmentBrush="#8C8C8C"
                XBindingPath="Category"
                YBindingPath="Value">
            </chart:WaterfallSeries>

        </chart:SfChart>
    </StackPanel>
</Window>
public class WaterfallModel
    {
        public double Value { get; set; }

        public string Category { get; set; }

        public bool IsSummary { get; set; }
    }
    public class ViewModel
    {
        public ViewModel()
        {
            this.RevenueDetails = new ObservableCollection<WaterfallModel>();

            RevenueDetails.Add(new WaterfallModel() { Category = "Sales", Value = 165 });
            RevenueDetails.Add(new WaterfallModel() { Category = "Staff", Value = -47 });
            RevenueDetails.Add(new WaterfallModel() { Category = "Balance", Value = -58, IsSummary = true });
            RevenueDetails.Add(new WaterfallModel() { Category = "Others", Value = 15 });
            RevenueDetails.Add(new WaterfallModel() { Category = "Tax", Value = -20 });
            RevenueDetails.Add(new WaterfallModel() { Category = " Net Income", Value = 25, IsSummary = true });
        }

        public ObservableCollection<WaterfallModel> RevenueDetails { get; set; }

    }

Learning resources

Navigate to GitHub code used to configure the WPF Waterfall Chart

GitHub code

Explore the WPF Waterfall Chart example from GitHub to learn how to render and configure charts.

Navigate to the options available in the user guide to customize the WPF Waterfall Chart

WPF Waterfall Chart User Guide

Learn more about the available options to customize WPF Waterfall Charts.

Navigate to the API references documentation of the WPF Waterfall Chart

WPF Waterfall Chart API reference

Explore the WPF Waterfall Chart APIs.
