Overview

The WinUI 100% Stacked Column Chart visualizes data with y-values stacked over one another in the series order. It shows the relationship between individual values to the total sum of the points.

WinUI 100 Percentage Stacked Column Chart Documentation

WinUI 100 Percentage Stacked Column Chart


Key Features

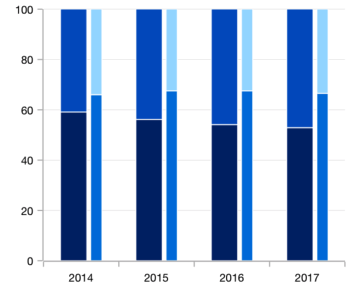

WinUI Grouped Stacked Column chart

Grouped Stacked Chart

Group a series with another series using the group name in a chart. Group the series with different stacking names separately.

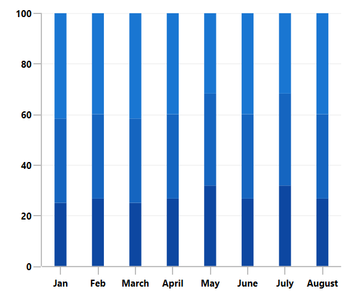

WinUI stacked Column Chart Showing Spacing between Bars

Spacing and Width

Customize the spacing between two rectangles.

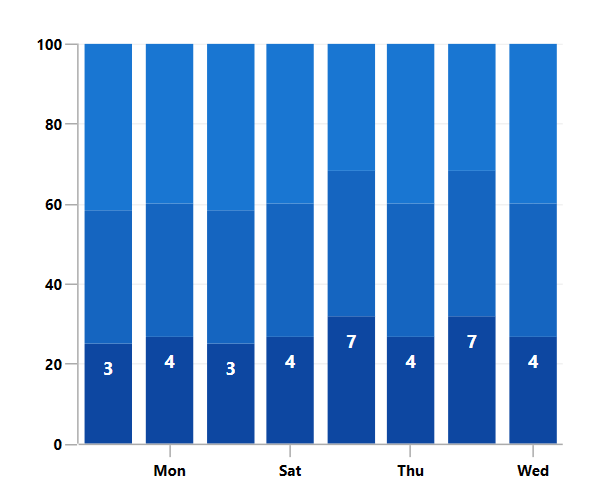

WinUI Stacked Column Chart with Data Labels

Data Labels

Data labels display information about the data points. Customize the labels’ foreground, border, and background. Template support to customize the default appearance with the desired view. Rotate a data label by its given angle.


Code Guideline

Easily get started with WinUI 100% Stacked Column Chart using a few simple lines of XAML and C# code, as demonstrated below.

<Window x:Class="ChartExample.MainPage"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="using:ChartExample"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:chart="using:Syncfusion.UI.Xaml.Charts"
        mc:Ignorable="d"
        Title="WinUI 100% Stacked Column Chart" Height="450" Width="700">

    <Grid>
        <chart:SfSfCartesianChartChart Height="300" Width="500">
            <!--Setting DataContext-->
            <chart:SfCartesianChart.DataContext>
                <local:ViewModel/>
            </chart:SfCartesianChart.DataContext>

            <!--Initialize the horizontal axis for the WinUI Chart-->
            <chart:SfCartesianChart.XAxes>
                <chart:DateTimeAxis/>
            </chart:SfCartesianChart.XAxes>

            <!--Initialize the vertical axis for the WinUI Chart-->
            <chart:SfCartesianChart.YAxes>
                <chart:NumericalAxis/>
            </chart:SfCartesianChart.YAxes>

            <!--Adding 100% Stacked Column Series to the WinUI Chart-->

            <chart:StackedColumn100Series
                ItemsSource="{Binding Accidents}"
                XBindingPath="Month"
                YBindingPath="Bus">
            </chart:StackedColumn100Series>

            <chart:StackedColumn100Series
                ItemsSource="{Binding Accidents}"
                XBindingPath="Month"
                YBindingPath="Car">
            </chart:StackedColumn100Series>

            <chart:StackedColumn100Series
                ItemsSource="{Binding Accidents}"
                XBindingPath="Month"
                YBindingPath="Truck">
            </chart:StackedColumn100Series>
        </chart:SfSfCartesianChartChart>
    </Grid>
</Window>
public class StackingColumnChartModel
{
    public DateTime Month { get; set; }
    public double Bus { get; set; }
    public double Car { get; set; }
    public double Truck { get; set; }
}

public class ViewModel
{
    public ObservableCollection<StackingColumnChartModel> Accidents { get; set; }

    public ViewModel()
    {
        this.Accidents = new ObservableCollection<StackingColumnChartModel>();
        DateTime mth = new DateTime(2011, 1, 1);

        Accidents.Add(new StackingColumnChartModel() { Month = mth.AddMonths(6), Bus = 3, Car = 4, Truck = 5 });
        Accidents.Add(new StackingColumnChartModel() { Month = mth.AddMonths(7), Bus = 4, Car = 5, Truck = 6 });
        Accidents.Add(new StackingColumnChartModel() { Month = mth.AddMonths(8), Bus = 3, Car = 4, Truck = 5 });
        Accidents.Add(new StackingColumnChartModel() { Month = mth.AddMonths(9), Bus = 4, Car = 5, Truck = 6 });
        Accidents.Add(new StackingColumnChartModel() { Month = mth.AddMonths(10), Bus = 7, Car = 8, Truck = 7 });
        Accidents.Add(new StackingColumnChartModel() { Month = mth.AddMonths(11), Bus = 4, Car = 5, Truck = 6 });
        Accidents.Add(new StackingColumnChartModel() { Month = mth.AddMonths(12), Bus = 7, Car = 8, Truck = 7 });
        Accidents.Add(new StackingColumnChartModel() { Month = mth.AddMonths(13), Bus = 4, Car = 5, Truck = 6 });
    }
}

Learning Resources

Navigate to GitHub code used to configure the WinUI Stacked Column Graph

GitHub Code

Explore the 100% WinUI Stacked Column Chart example from GitHub to learn how to render and configure charts.

Navigate to the options available in the user guide to customize the WinUI Stacked Column Graph

WinUI 100% Stacked Column Chart User Guide

Learn more about the available options to customize WinUI 100% Stacked Column Graphs.

Navigate to the API references documentation of the WinUI Stacked Column Graph

WinUI 100% Stacked Column Chart API References

Explore the WinUI 100% stacked column graph APIs.
