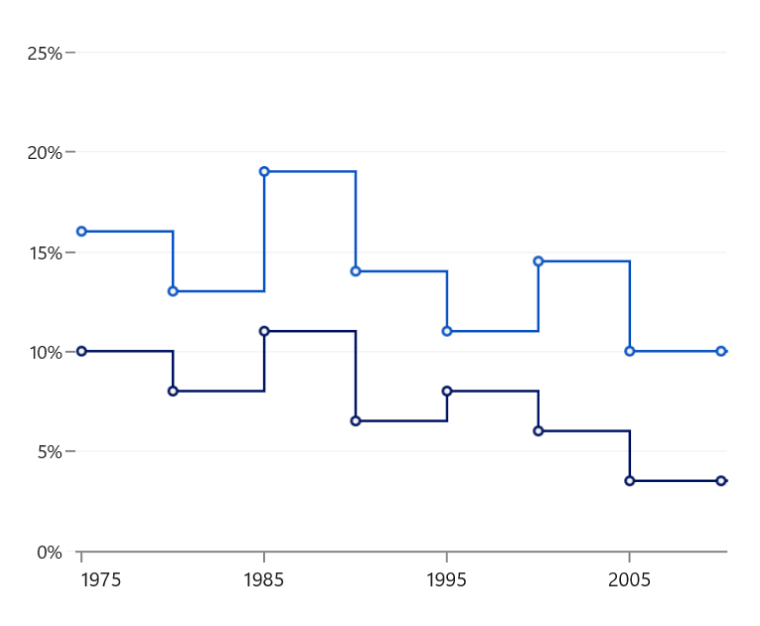

The WinUI Step Line Chart (a.k.a WinUI Stepped Chart or WinUI Stepped Line Chart) is similar to the line chart, but it does not use the shortest distance to connect two data points using straight lines. Instead, the step line chart uses vertical and horizontal lines to connect data points in a series forming a step-like progression.

WinUI StepLine Chart Documentation

WinUI Step Line Chart


Key Features

WinUI Vertical Step Line Chart

Vertical Chart

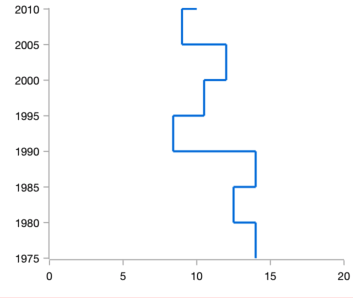

Rotate the step line chart to plot data vertically and view data from a different perspective.

WinUI Chart with Multiple Axes

Multiple Axes

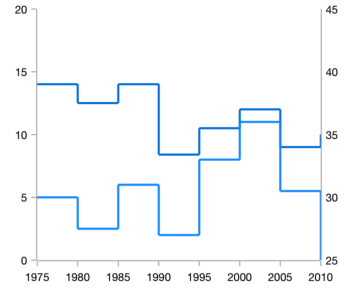

Use multiple axes to plot different data sets along two or more axes having different data points and values.

WinUI Step Line Chart showing Empty Point aka Null Point

Empty or Null Point Chart

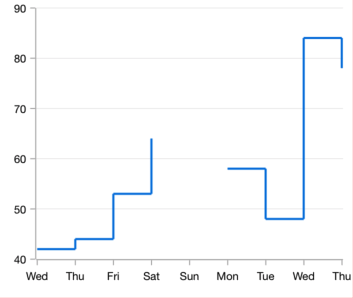

The WinUI Step Line Chart handles empty or null data points elegantly.

WinUI Step Line Chart with Data Labels

Data Labels

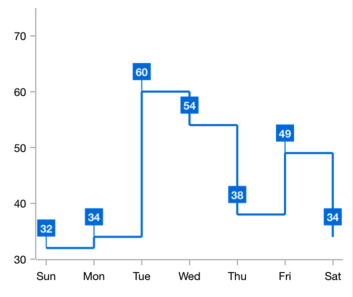

Data labels display information about the data points. Customize the labels foreground, border, and background. Template support to customize the default appearance with the desired view. Rotate a data label by its given angle.


Code Guideline

Easily get started with WinUI Step Line Chart using a few simple lines of XAML and C# code, as demonstrated below.

<Window x:Class="ChartExample.MainPage"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="using:ChartExample"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:chart="using:Syncfusion.UI.Xaml.Charts"
        mc:Ignorable="d"
        Title="WinUI Step Line Chart" Height="450" Width="700">

    <Grid>
        <chart:SfCartesianChart Height="300" Width="500">
            <!--Setting DataContext-->
            <chart:SfCartesianChart.DataContext>
                <local:ViewModel/>
            </chart:SfCartesianChart.DataContext>

            <!--Initialize the horizontal axis for the WinUI Chart-->
            <chart:SfCartesianChart.XAxes>
                <chart:CategoryAxis/>
            </chart:SfCartesianChart.XAxes>

            <!--Initialize the vertical axis for the WinUI Chart-->
            <chart:SfCartesianChart.YAxes>
                <chart:NumericalAxis/>
            </chart:SfCartesianChart.YAxes>

            <!--Adding Step Line Series to the WinUI Chart-->
             <chart:StepLineSeries ItemsSource="{Binding Data}"
                        XBindingPath="Month"
                        YBindingPath="Target">
                </chart:StepLineSeries>
        </chart:SfCartesianChart>
    </Grid>
</Window>
public class Model
{
    public string Month { get; set; }

    public double Target { get; set; }

    public Model(string xValue, double yValue)
    {
        Month = xValue;
        Target = yValue;
    }
}

public class ViewModel
{
    public ObservableCollection<Model> Data { get; set; }

    public ViewModel()
    {
        Data = new ObservableCollection<Model>()
        {
            new Model("Jan", 50),
            new Model("Feb", 70),
            new Model("Mar", 65),
            new Model("Apr", 57),
            new Model("May", 48),
        };
    }
}

Learning Resources

Navigate to GitHub code used to configure the WinUI Step Line Chart

GitHub Code

Explore the WinUI Step Line Chart example from GitHub to learn how to render and configure charts.

Navigate to the options available in the user guide to customize the WinUI Step Line Chart

WinUI Step Line Chart User Guide

Learn more about the available options to customize WinUI Step Line Charts.

Navigate to the API references documentation of the WinUI Step Line Chart

WinUI Step Line Chart API Reference

Explore the WinUI Step Line Chart APIs.
