PowerPoint to Image Conversion in UWP

Let’s learn how to convert a PowerPoint slide to an image in UWP.

Prerequisites:

• Windows 10
• Visual Studio 2015 or 2017
• Windows 10 SDK

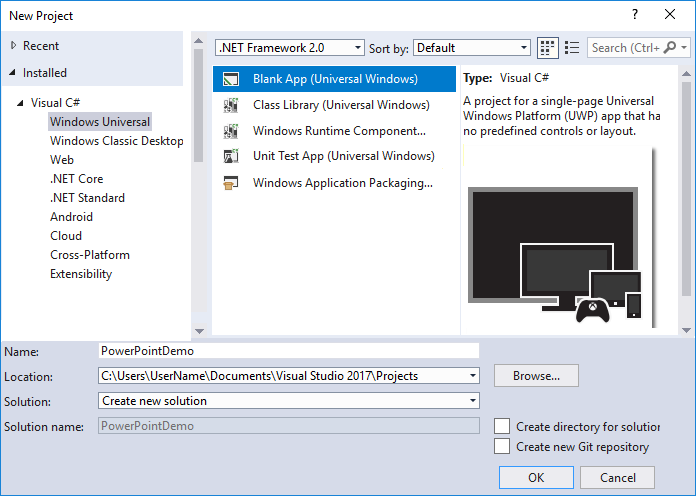

Step 1: Create a Blank App (Universal Windows) and name it PowerPointDemo.

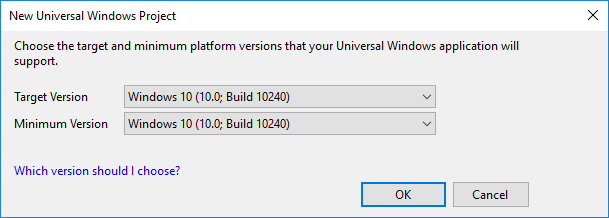

Step 2: Choose the target version (Essential Presentation is supported from the minimum version).

Step 3: Add the Syncfusion.Presentation.UWP NuGet package as a reference to the project from the Syncfusion UWP NuGet feed. For more information about adding a NuGet feed in Visual Studio and installing NuGet packages, refer to our documentation.

You can also install this package from the NuGet package manager console by executing the following command.

Install-package Syncfusion.Presentation.UWP -source http://nuget.syncfusion.com/nuget_universalwindows/nuget/getsyncfusionpackages/universalwindows

Step 4: Add an input PowerPoint document to the asset folder. Right-click the PowerPoint document, select Properties, and set its build action as Embedded resource.

Step 5: Add a button in the MainPage.xaml.

<Page
    x:Class="PresentationDemo.MainPage"
    >="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    >="http://schemas.microsoft.com/expression/blend/2008"
    >="http://schemas.microsoft.com/winfx/2006/xaml"
    >="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d">
    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
        <Button Name="ConvertPPTX" HorizontalAlignment="Center" VerticalAlignment="Center" Content="Convert" Click="ConvertPPTX_Click"></Button>
    </Grid>
</Page>

Step 6: Add the following code in the ConvertPPTX_Click method in the MainPage.xaml.cs file to retrieve the embedded PowerPoint file as stream and convert the PowerPoint slide to an image using the SaveAsImageAsync method of ISlide interface.

Note: It is mandatory to instantiate the ChartToImageConverter property of IPresentation interface, otherwise the charts will be left blank in the resultant image.

//Get the embedded PowerPoint presentation. You can use a file picker to read a file instead.
Assembly assembly = this.GetType().GetTypeInfo().Assembly;
using (Stream stream =    assembly.GetManifestResourceStream("PowerPointDemo.Assets.Template.pptx"))
{
        //Load the presentation file from stream.
        using (IPresentation _presentation = Presentation.Open(stream))
        {
            //Initialize ‘ChartToImageConverter’ to convert the charts in slides
           _presentation.ChartToImageConverter = new ChartToImageConverter();

            //Get the first slide in the presentation.
            ISlide slide = _presentation.Slides[0];

            //Create a storage file to save the converted image.
            StorageFile sampleFile = await KnownFolders.PicturesLibrary.CreateFileAsync("Slide1.png", CreationCollisionOption.ReplaceExisting);

            //Convert the slide to an image.
            using (var imageStream = await sampleFile.OpenStreamForWriteAsync())
            {
                await slide.SaveAsImageAsync(imageStream);
            }
        }
}

Converting a PowerPoint slide to a thumbnail image

You can also generate images in custom sizes by enabling rendering options. The below code example shows how to convert a PowerPoint slide to a thumbnail image.

//Set the rendering options to scale the image at 0.25. The default scaling factor is 1.
RenderingOptions options = new RenderingOptions() { ScaleX = 0.25f, ScaleY = 0.25f };
//Convert the slide to an image.
using (var imageStream = await sampleFile.OpenStreamForWriteAsync())
{
await slide.SaveAsImageAsync(imageStream);
}

You can also print a PowerPoint presentation by printing the converted images. The images can be printed using the UWP native printer APIs.

A simple PowerPoint viewer UWP application can be downloaded, showing you how to display a slide and print the PowerPoint presentation.

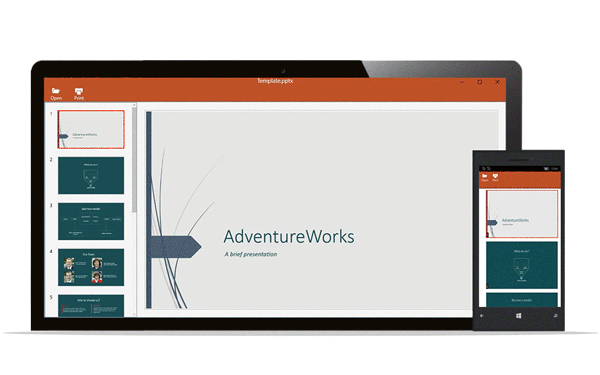

Simple PowerPoint viewer application’s desktop and mobile views
